IntAfit Heavy Duty Drawer Runner 227kg (500lbs) – 76 x 355mm

Features

• Quick Release: No (due to load rating)
• Closed Length:  355mm (14″)
• Open Length:  710mm (28″)
• Profile Height: 76mm
• Profile Width: 19.2mm
• Load Rating: 227kg (based on a 457mm runner)
• Range Sizes: 250 – 1524mm (10″ – 60″)
• Finish: Zinc Plated

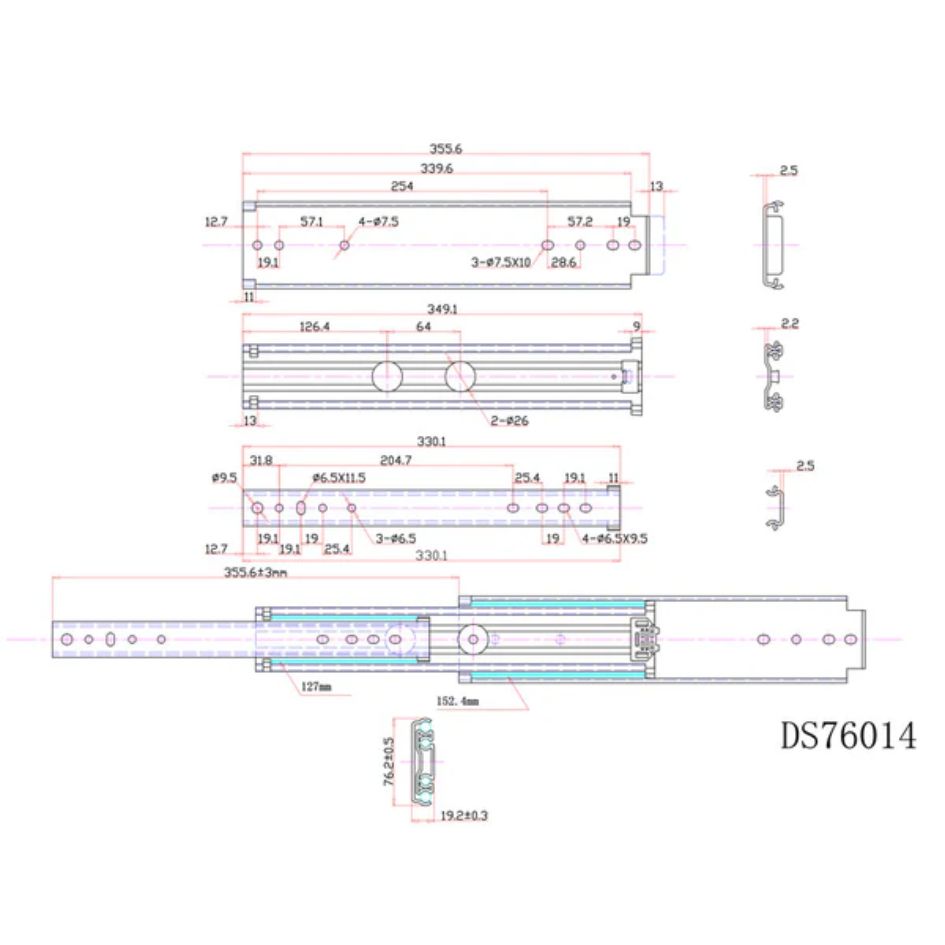

Specification Sheet
