IntAfit Heavy Duty Locking Drawer Runner 227kg (500lbs) – 76 x 1016mm

Features

• Quick Release: No (due to load rating)
• Closed Length: 1016mm (40″)
• Open Length: 2032mm (80″)
• Profile Height: 76mm
• Profile Width: 19.1mm
• Locking: When 100% Open & Closed
• Load Rating: 227kg (based on a 457mm runner)
• Finish: Zinc Plated
• Handed: Yes (L & R)
• Locking Lever: Both Sides

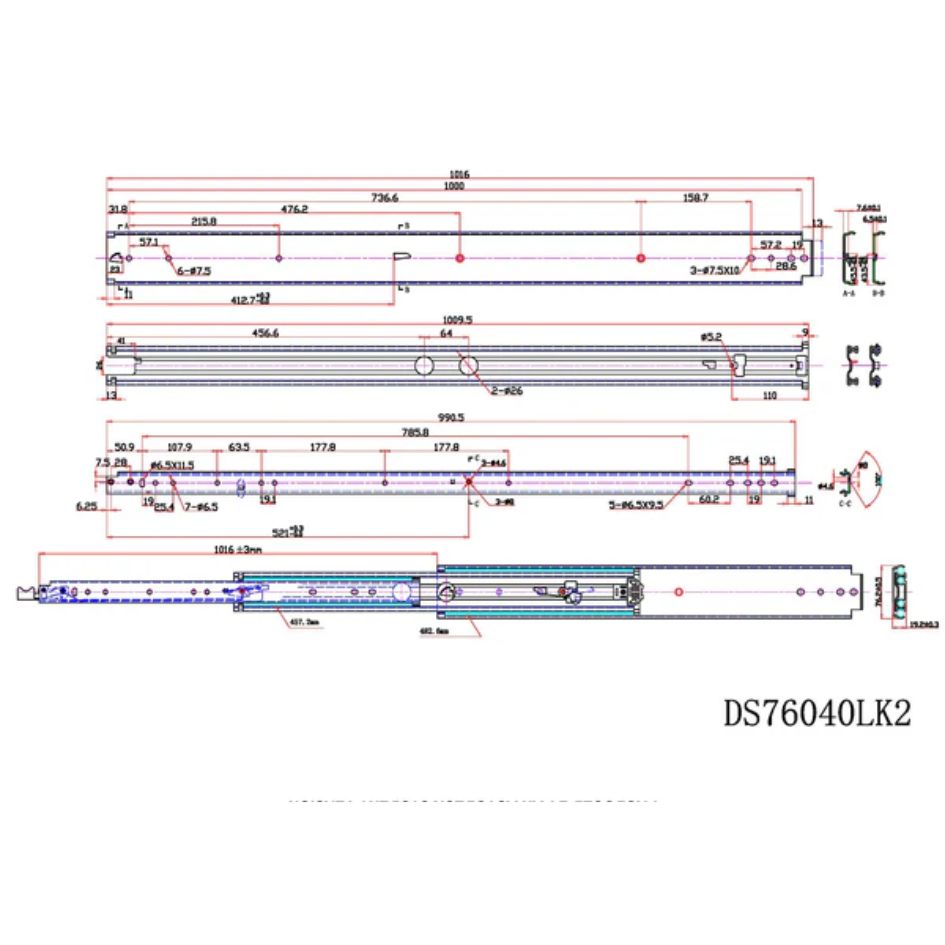

Specification Sheet
