Sugatsune Heavy Duty Cabinet Hinge Full Overlay 95°

SKU: HF20001 & HF25003

Features

• Finish: Nickel Plated
• Opening Angle: 95 degrees

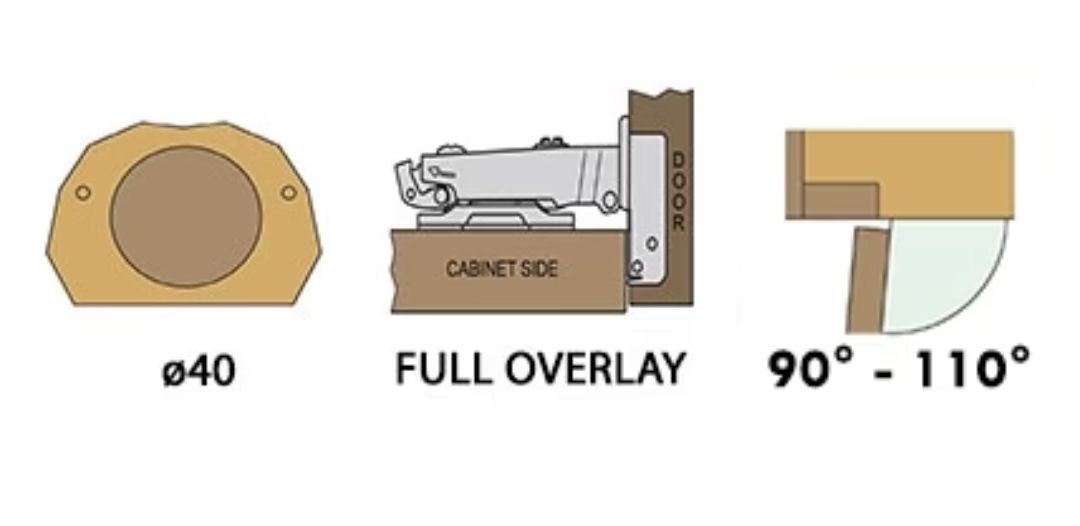

• Overlay: Full
• Min / Max Door Thickness: 18 / 30mm
• Min / Max Overlay: 20 / 25mm
• Sprung
• Cup Diameter: 40mm
• Cup Depth: 15mm
• Cup hole Centers: 48mm
• Cup Fixing: Screws
• Plate Fixing: Screw Fix – 37mm from front edge | 32mm hole centres
• Maximum door weight: 25kg when using a pair of hinges, 40kg when using 3 hinges per door
• Pack Contents: 1 hinge
